Carbon dioxide recovery unit is an advanced gas separation and purification equipment, which can realize the process of capturing, separating and purifying carbon dioxide gas for reuse. This equipment has been widely used in industry and food industry.

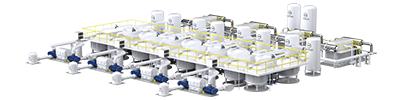

CO2 Recovery Plant
Free Gas Solution
CO2 recovery units capture CO2 from the current environment, and then through appropriate scrubbing, filtration and separation techniques achieve the required quality of carbon dioxide, which can then be recharged and utilized or discharged.
Minnuo, as a professional gas separation and purification equipment manufacturer and supplier, we have 36 years of experience in gas processing, and we have many successful cases for the development, production and implementation of CO2 gas recovery equipment, and the equipment has been exported to more than 50 countries around the world. Our CO2 recovery plants are manufactured in accordance with industry standards, with a wide range of capacities to choose from, and can meet international food-grade quality standards.
There are some application scenarios that require the use of gas blowers, gas scrubbers, etc. You want to configure a set of CO2 recovery unit, you can contact our engineers to do a customized design, so that your gas recovery unit is more high-quality and professional!
Specification | SYET－50 | SYET－100 | SYET－200 | SYET－300 | SYET－500 | SYET－800 | SYET－1000 | SYET－2000 |
Treatment capacity (kg) | 50 | 100 | 200 | 300 | 500 | 800 | 1000 | 2000 |
Recovery rate (%) | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
Purity (%) | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 | 99.99 |
CO2 storage pressure (MPa) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
CO2 storage (t) | 2 | 6 | 12 | 20 | 30 | 40 | 50 | 120 |
Use pressure (MPa) | 0.5-0.8 | |||||||
Use temperature (℃) | as required | |||||||
Inlet pressure (MPa) | 0.03-0.05 | |||||||
* Larger capacities are available upon request
Our CO2 recovery plants come in a variety of sizes and capacities to meet the needs of small plants to large industrial sites. We offer customized solutions to ensure that the capacity of the unit is matched to the specific needs of the customer.
● Capture: Capture of emitted CO2 by chemical absorption or physical adsorption.
● Compression: Compression of CO2 into liquid or supercritical fluids.
● Purification: Removal of impurities through multi-stage filtration and chemical reactions.
● Liquefaction: Cooling and converting CO2 to a liquid state for easy storage and transportation.
● Storage/Utilization: Use the recovered CO2 for industrial applications such as enhanced oil recovery, greenhouse gas fertilizer, or as an industrial feedstock.
If it is intended to be used in food and beverage applications, it needs to be purified again to meet food-grade CO2 standards.
Minnuo as a professional gas separation and purification equipment manufacturer, we have participated in many large-scale gas recovery and purification projects, and:
Technical expertise & quality assurance:
We have a professional technical team to provide one-stop service from design to installation, and all the units undergo strict quality control to ensure excellent performance.
Customized solutions:
We provide personalized solutions according to the specific needs of our customers.
Environmental responsibility:
Work with us to contribute to the reduction of global greenhouse gas emissions.
If you are still worrying about whether you need to choose a CO2 recovery device, then I tell you now, choosing the right CO2 recovery device will solve the situation that you are dependent on other suppliers for CO2, and you can independently control the use of CO2, and it can effectively reduce the cost of transportation, procurement and filling of bottles, etc. Tell our engineers your needs and calculate how long it takes to pay back the money.
We will contact you within 1 working day, please pay attention to the email with the suffix “@minnuogas.com”.
