Integrating Nitrogen Generators with Existing Plant Utilities

I. Introduction

You’ve made the decision: on-site nitrogen generation makes sense for your plant. The ROI calculations look good. The equipment is selected. Now comes the next challenge—integrating it with everything else.

A nitrogen generator doesn’t exist in isolation. It needs compressed air, electrical power, cooling, and sometimes connection to plant control systems. How you handle these connections affects not just performance, but reliability, efficiency, and safety.

For a new facility, you design everything together. But for an existing plant, you’re fitting new equipment into an operating environment. Pipes, wires, and controls must connect to what’s already there—without disrupting production.

This guide covers the key considerations for integrating nitrogen generators with existing plant utilities: compressed air systems, electrical supply, controls, and more.

II. Integrating with Existing Compressed Air Systems

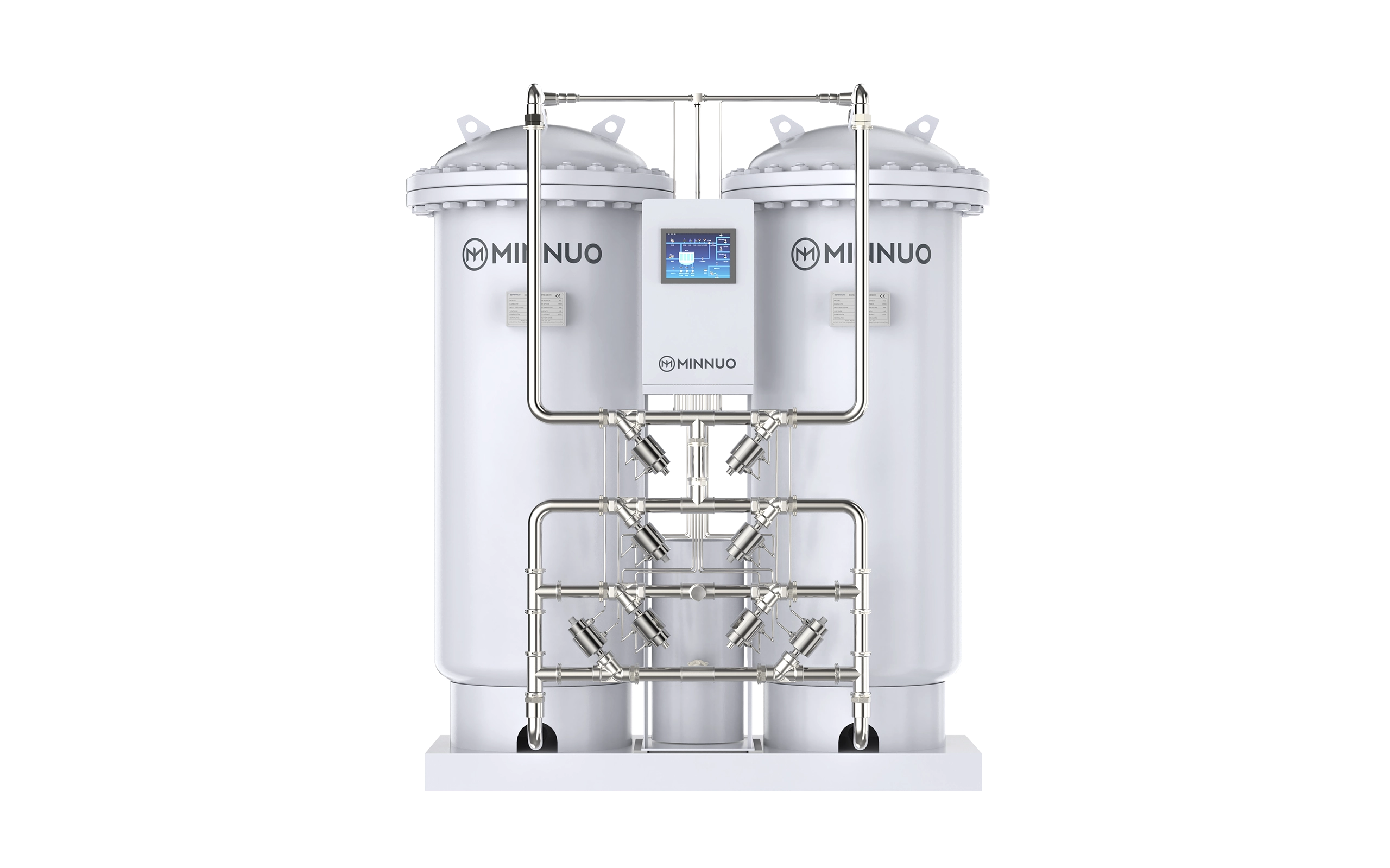

The most critical connection for any nitrogen generator is the compressed air supply. PSA and membrane systems don’t create nitrogen from nothing—they separate it from compressed air.

Air quality requirements:

Your nitrogen generator needs clean, dry compressed air at the right pressure and flow. If your existing compressed air system doesn’t meet these requirements, the generator won’t perform—and may be damaged.

Requirement	Typical Specification	Why It Matters
Pressure	5-10 bar (70-145 PSI)	Too low = insufficient flow; too high = component stress
Flow	Generator rating + margin	Peak demand may exceed average
Oil content	<0.01 mg/m³ for PSA, <0.003 mg/m³ for membrane	Oil contaminates sieves and membranes
Dew point	+3°C to -40°C depending on generator	Moisture damages internals
Particulates	<0.1 micron	Prevents abrasion and clogging

Assessing your current air system:

• Do you have enough capacity? The generator adds continuous load.
• Is your air quality good enough? Test for oil, water, and particles.
• Is pressure stable? Fluctuations affect generator performance.

Upgrades you may need:

• Additional filtration (coalescing, activated carbon)
• Improved drying (refrigerated or desiccant)
• Dedicated air line to the generator
• Pressure regulation for stable supply

Connection point:

Connect the generator to the main header, not to a branch line that might experience pressure drops when other users cycle. Install an isolation valve for maintenance.

III. Electrical Integration and Power Requirements

Nitrogen generators need power—for controls, valves, and sometimes heaters or auxiliary systems.

Power requirements:

• Small generators: 230V single-phase may suffice
• Larger industrial units: 400V/480V three-phase typical
• Control voltage: Usually 24V DC or 120V AC

Assessing your electrical system:

• Is there available capacity in your panel?
• Does the generator’s starting current require soft-start or VFD?
• Is the supply stable? Voltage fluctuations can affect controls.

Installation considerations:

• Dedicated circuit recommended
• Proper disconnect within sight of the generator
• Emergency stop integration with plant systems
• Surge protection for sensitive electronics

Backup power:

If nitrogen is critical to your process, consider:

• Connecting the generator to emergency power
• Automatic transfer switch for power outages
• UPS for controls (to prevent fault on power dip)

IV. Control System Integration

Modern nitrogen generators have sophisticated controls. Integrating them with your plant’s control system improves monitoring and response.

What to integrate:

Signal	Type	Purpose
Run status	Digital input	Is generator operating?
Fault alarm	Digital input	Generator needs attention
Purity reading	Analog (4-20 mA)	Real-time nitrogen quality
Pressure reading	Analog (4-20 mA)	System pressure monitoring
Flow reading	Analog (4-20 mA)	Consumption tracking
Remote start/stop	Digital output	Control from DCS/PLC

Communication protocols:

• Modbus RTU (RS-485) – Common, simple
• Profibus, Profinet – For Siemens environments
• Ethernet/IP – For Rockwell/Allen-Bradley
• BACnet – For building management systems

What to monitor:

• Purity trends (early warning of problems)
• Filter pressure drops (maintenance alerts)
• Compressed air consumption (efficiency tracking)
• Operating hours (maintenance scheduling)

Alarm philosophy:

Set alarms at levels that give you time to respond:

• Warning: Purity approaching lower limit, investigate
• Alarm: Purity below spec, take action
• Shutdown: Critical fault, generator stops

V. Cooling and Ventilation Requirements

Nitrogen generators generate heat—from compression (if integral) and from the separation process.

Heat load:

• PSA systems: Moderate heat from valve cycling and adsorption
• Membrane systems: Low heat generation
• Integral compressor: Significant heat (like any air compressor)

Ventilation needs:

• Room temperature should stay below 40°C (104°F)
• Provide adequate airflow for cooling
• Consider ducting exhaust heat outside in summer
• In cold climates, recovered heat can warm the space

If your generator has an integral compressor:

• This adds significant heat load
• May need dedicated ventilation
• Heat recovery possible for plant heating

Cold weather considerations:

• Protect against freezing if generator in unheated space
• Some components (drains, silencers) can ice up
• Consider heat tracing for critical lines

VI. Piping and Distribution Integration

Once nitrogen is produced, it must reach your points of use. This may tie into existing piping or require new distribution.

Materials:

• Stainless steel: Best for high-purity applications
• Copper: Acceptable for many industrial uses
• Aluminum: Lightweight, easy to install
• Carbon steel: Avoid (rust contaminates nitrogen)

Sizing:

• Calculate peak flow, not just average
• Size for acceptable pressure drop (typically <1 PSI/100 ft)
• Consider future expansion

Connection to existing system:

• If you’re replacing liquid or cylinder nitrogen, connect at same point
• Install isolation valve for generator maintenance
• Consider check valve to prevent backflow

Point-of-use considerations:

• Pressure regulators where needed
• Additional filtration for sensitive applications
• Label all nitrogen lines clearly

VII. Commissioning and Testing

Integration isn’t complete until you’ve verified everything works together.

Pre-commissioning checks:

• Verify all utilities connected properly
• Check for leaks in new piping
• Confirm electrical connections correct
• Review control integration points

Startup sequence:

1. Verify compressed air quality meets specs
2. Open isolation valves slowly
3. Power up controls, check for errors
4. Run through startup sequence per manual
5. Monitor pressures, cycle timing, purity
6. Allow system to stabilize (may take several cycles)

Performance testing:

• Verify purity at rated flow
• Check response to demand changes
• Test alarms and shutdowns
• Validate control system integration

Documentation:

• Update P&IDs to show new equipment
• Record baseline performance data
• Note setpoints and configuration
• Provide training to operators

FAQ

Q1: Can I connect a nitrogen generator to my existing compressed air system without upgrades?

A1: Possibly, but assess first. Test your air quality for oil, water, and particles. Verify you have enough capacity. Check pressure stability. Many plants need at least some upgrades to filtration or drying.

Q2: How much compressed air does a nitrogen generator use?

A2: Typically 4-6 times the nitrogen output. A generator producing 100 scfm of nitrogen needs about 400-600 scfm of compressed air. Factor this into your compressor capacity.

Q3: Do I need a dedicated compressor for my nitrogen generator?

A3: Not necessarily, but often beneficial. A dedicated compressor ensures clean, stable air supply and isolates the generator from other users’ pressure fluctuations. It also adds redundancy—if one compressor fails, you still have air for critical uses.

Q4: How do I integrate the generator with my plant’s emergency shutdown system?

A4: Include the generator in your ESD philosophy. Decide: should it shut down on ESD, or keep running if safe? Work with your safety team to determine appropriate response. Provide ESD signal to generator controls.

Q5: What space requirements should I plan for?

A5: Generator footprint plus access for maintenance (typically 3 feet on all sides). Also account for ventilation, electrical panels, and any ancillary equipment (filters, dryers, buffer tanks). Get dimensions from supplier.

Q6: How long does installation and commissioning take?

A6: Typically 2-5 days for a straightforward integration, depending on complexity. Factor in time for piping, electrical, controls integration, and testing. Plan during scheduled downtime if possible.

Q7: Who should do the installation—my staff or the supplier?

A7: Usually a combination. Your staff can handle mechanical and electrical connections under supplier guidance. The supplier should handle commissioning and startup to ensure proper operation. Clarify responsibilities before starting.

Conclusion

Adding a nitrogen generator to an existing plant is more than just setting a new machine in place. It’s about integrating with everything that’s already there: compressed air systems, electrical distribution, plant controls, and existing piping.

Get the integration right, and your generator becomes a seamless part of plant operations—reliable, efficient, and transparent to production. Get it wrong, and you’ll fight pressure drops, quality issues, and nuisance shutdowns.

The key is planning. Assess your existing utilities honestly. Identify upgrades needed before installation. Design controls integration with input from your operations team. Test thoroughly before relying on the generator for production.

At MINNUO, we don’t just sell generators—we help integrate them. From site assessment to commissioning to operator training, we work with you to ensure your new system connects smoothly with everything you already have. Because we know that in a running plant, the best installation is the one that doesn’t disrupt production.
